S7 Side Mount Shaker

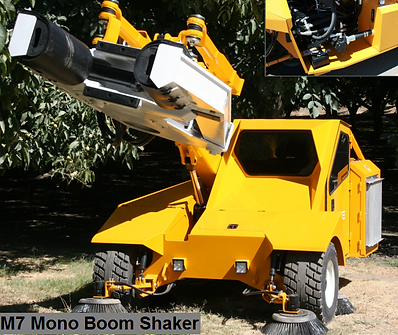

M7 Mono Boom Shaker
ENGINE
John Deere 6CYL (6.8T Tier 3 139 H.P ) with high debris radiator & COE Dual Cool system Propulsion— Eaton Hydrostatic Transmission and 2-speed Wheel Motors. Drive— Auburn Gear 19-1 Planetary Gear 2WD, Brakes— Active Braking w/ Parking Brake Tires— 33 / 16.5 x 16.5 12 Ply COE Air Cleaner— Dual Dry Elements w/ Pre-Cleaner Light Package– Halogen Front, Shaker Head and Rear Finish— Powder coated Weight— 12,900 lbs = 5,900kg
SHAKER HEAD
Type— Coe TH-7 Thunder Head Construction— Heavy Duty T1 Steel Drive— Single Belt 8V Motor— VOAC F12-80 Piston Clamp— 4” Bore Single Cylinder, 24” opening Patterns— HD, MD, LD Bearings— Heavy Duty Spherical (greaseable) Pads— Oval Style 70-Duro 24” Mounting— 3– Point Decelerator Head Brake w/ Anti Cavitation
ENGINE
ohn Deere 6CYL (6.8T Tier 3 139 H.P ) with high debris radiator & COE Dual Cool system Propulsion— Eaton Hydrostatic Transmission and 2-speed Wheel Motors. Drive— Auburn Gear 19-1 Planetary Gear 2WD, Brakes— Active Braking w/ Parking Brake Tires— 33 / 16.5 x 16.5 12 Ply COE Air Cleaner— Dual Dry Elements w/ Pre-Cleaner Light Package– Halogen Front, Shaker Head and Rear Finish— Powder coated Weight— 14,800 lbs = 6,790kg
SHAKER HEAD
Type— Coe TH-7 Thunder Head Construction— Heavy Duty T1 Steel Drive— Single Belt 8V Motor— VOAC F12-80 Piston Clamp— 4” Bore Single Cylinder, 24” opening Patterns— HD, MD, LD Bearings— Heavy Duty Spherical (greasable) Pads— Oval Style 70-Duro 24” Mounting— 3– Point Decelerator Head Brake w/ Anti Cavitation
Equipment Options
ENGINE
John Deere 6CYL (6.8T Tier 3 139 H.P ) with high debris radiator & COE Dual Cool system Propulsion— Eaton Hydrostatic Transmission and 2-speed Wheel Motors. Drive— Auburn Gear 19-1 Planetary Gear 2WD, Brakes— Active Braking w/ Parking Brake Tires— 33 / 16.5 x 16.5 12 Ply COE Air Cleaner— Dual Dry Elements w/ Pre-Cleaner Light Package– Halogen Front, Shaker Head and Rear Finish— Powder coated Weight— 12,900 lbs = 5,900kg
SHAKER HEAD
Type— Coe TH-7 Thunder Head Construction— Heavy Duty T1 Steel Drive— Single Belt 8V Motor— VOAC F12-80 Piston Clamp— 4” Bore Single Cylinder, 24” opening Patterns— HD, MD, LD Bearings— Heavy Duty Spherical (greaseable) Pads— Oval Style 70-Duro 24” Mounting— 3– Point Decelerator Head Brake w/ Anti Cavitation
S7 Side Mount Shaker
ENGINE
John Deere 4045L 99hp Tier 3 Engine Eaton Series 2 Hydrostat Auburn Gear Power Wheels Hydraulic Remote Foot Pedal All Wheel Drive (3 Wheel) Joy Stick Control w/ Push Buttons Light Package COE Welded Cylinders
SHAKER HEAD
COE TH-8 Belt Drive Head w/ VOAC Motor COE Head Decelerator Valve 33” x 16” 12ply Tires Power Steering Oil Cooler For Main Circuit Automatic Fruit Retainers 12” Urethane Hydraulic Sliding Top Deck Hydraulic Adjustable Deck Angle PVC Top & Mid Deck Covers Sling Lubrication Injection System COE Clamp/Shake Auto Sequence system Heavy Duty Construction Storage Compartment High Capacity Fuel Reservoir HD MD or LD Shake Patterns Powder Coated Chassis
C7E Tree Shaker
ENGINE
John Deere 4045L 99hp Tier 3 Diesel Engine
Eaton Series 2Hydrostat Auburn Gear Power Wheels Hydraulic Remote Foot Pedal All Wheel Drive (3 Wheel) Power Steering Oil Cooler Hydraulic Flip Seal 33” x 16” 12-Ply Tires Independent Rear Steering Hydraulic Sliding Top Decks Light Package COE Welded Cylinders 24” Main 30” Elevator Conveyor and Blower Flow Controls High Volume Debris Blower Heavy Duty Construction High Capacity Fuel Reservoir
L2E Fruit Receiver
ENGINE
John Deere 4045L 99hp Tier 3 Engine
Eaton Series 2 Hydrostat Auburn Gear Power Wheels Hydraulic Remote Foot Pedal All Wheel Drive (4 Wheel) 4 Speeds Shift on the Go 4 Leaf Spring Suspension Air Bag Overrides 7 Empty 6 Full Bin Capacity Quad Chain System Independent Rear Steering Dual Joy Stick Control Light Package COE Welded Cylinders Chain Front Forks Comfort Suspension Seat Ultra Low Profile Construction Heavy Duty Construction Storage Compartment High Capacity Fuel Reservoir Powder Coated Chassis
